Limelight Collection

With elegant styling and exceptional performance, your Limelight Collection spa will quickly become a central hub of your home.

The Limelight Difference

Each Limelight Collection model offers soothing massage, vibrant lighting, and exclusive features that make spa ownership easy. Plus, you can count on the quality you expect from a Hot Spring spa – so sit back, relax and enjoy.

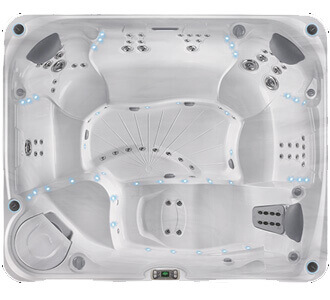

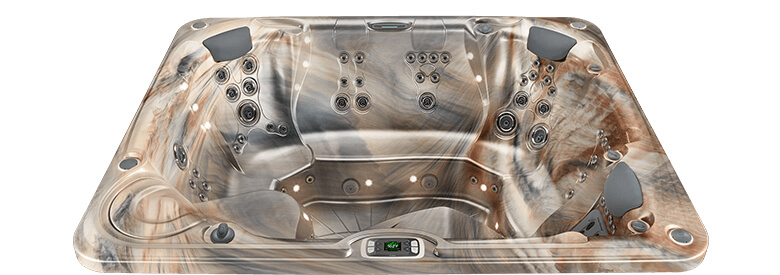

Gleam

Designed to comfortably seat up to 8 people, the Gleam model creates a soothing space to relax and connect with friends and family. In addition to modern styling and state-of-the-art jets that deliver soothing massage, the Gleam creates soothing ambience with multi-color exterior lighting and a Vidro^® lit water feature.

Seating Capacity	8 Adults
Dimensions	7’7” x 9’2” x 38” 2.31m x 2.79m x .97m
Water Capacity	510 gallons/1,925 liters
Weight	1,270 lbs./575 kg dry 6,925 lbs./3,140 kg filled*
Jet Count	73
Hot Tub Jets	1-Moto-Massage^® DX jet (2) 4-Combination XL jets 9-Combination jets 58-Directional Precision^® jets
Lighting System	Raio^® multi-color points of light (39) Exterior multi-color lighting with timer
Water Features	Vidro^® backlit ribbon waterfall
Control System	IQ 2020^® with LCD control panel 230v/50amp, 60Hz 230v/70amp, 60Hz (optional) Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Jet Pump 1	Wavemaster^® 9200 Two-speed 2.5 HP, continuous duty 5.2 HP, breakdown torque
Jet Pump 2	Wavemaster^® 9000 One-speed 2.5 HP, continuous duty 5.2 HP, breakdown torque
Jet Pump 3	Wavemaster^® 9000 One-speed 2.5 HP, continuous duty 5.2 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care Options	ACE^® Salt Water Sanitizing System EverFresh^® system with CD ozone (optional)
Effective Filtration Area	100 sq. ft., top loading filters
Vinyl Cover	3.5" to 2.5" tapered 2 lb. density foam core
Vinyl Cover Colors	Ash Chestnut Caramel Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters	CoverCradle^® included
Steps (Optional)	Everwood^® Polymer

*Includes water and 8 adults each weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater

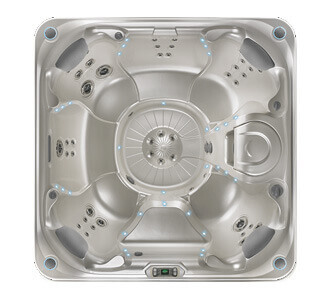

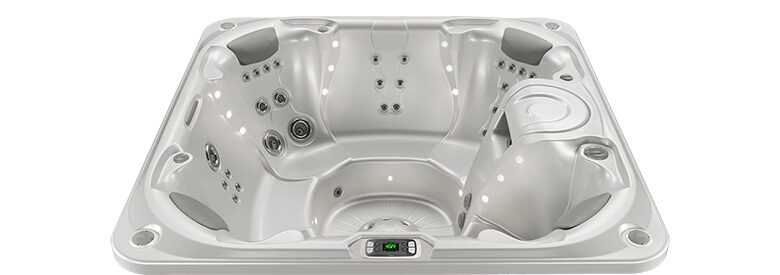

Pulse

The Pulse hot tub features sleek style and enough space to seat 7 people, so you can share the relaxing experience of soaking in a hot tub with the people who matter most to you. The Pulse also features 50 jets finished with stainless steel trim, multi-color lighting and a Vidro^® lit water feature.

Seating Capacity	7 Adults
Dimensions	7’5” x 7’5” x 38” 2.26m x 2.26m x .97m
Water Capacity	380 gallons/1,450 liters
Weight	990 lbs./450 kg dry 5,385 lbs./2,460 kg filled*
Jet Count	50
Hot Tub Jets	4-Combination XL jets 6-Combination jets 40-Directional Precision^® jets
Lighting System	Raio^® multi-color points of light (32)
Water Features	Vidro^® backlit ribbon waterfall
Control System	IQ 2020^® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Jet Pump 1	Wavemaster^® 9200 Two-speed 2.5 HP, continuous duty 5.2 HP, breakdown torque
Jet Pump 2	Wavemaster^® 9000 One-speed 2.5 HP, continuous duty 5.2 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care Options	ACE^® Salt Water Sanitizing System EverFresh^® system with CD ozone (optional)
Effective Filtration Area	65 sq. ft., top loading filters
Vinyl Cover	3.5" to 2.5" tapered 2 lb. density foam core
Vinyl Cover Colors	Ash Chestnut Caramel Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 7 adults each weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater

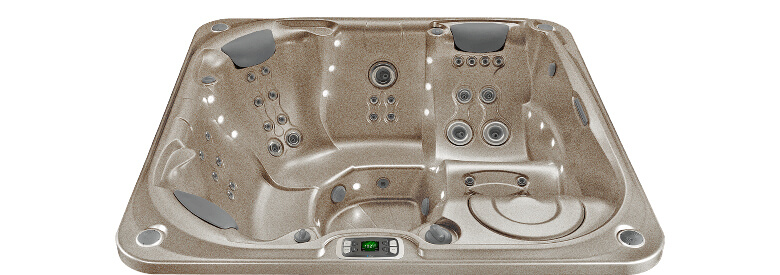

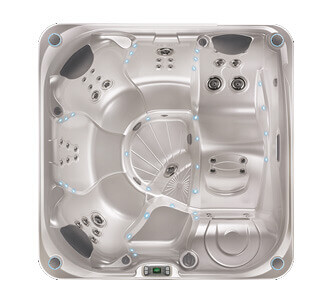

Flair

With features deliberately designed to help you feel your best, the Flair is the perfect space for you to unwind. Relax in the comfort of hot water with family and friends, relieve tension with the Flair’s 41 targeted jets and enjoy the ambience of the built-in Raio^® lighting system

Seating Capacity	6 Adults
Dimensions	7’ x 7’ x 36” 2.13m x 2.13m x .91m
Water Capacity	310 gallons/1,175 liters
Weight	930 lbs./420 kg dry 4,565 lbs./2,075 kg filled*
Jet Count	41
Hot Tub Jets	5-Combination XL jets 8-Combination jets 28-Directional Precision^® jets
Lighting System	Raio^® multi-color points of light (30)
Water Features	Vidro^® backlit ribbon waterfall
Control System	IQ 2020^® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Jet Pump 1	Wavemaster^® 8200 Two-speed 2.0 HP, continuous duty 4.0 HP, breakdown torque
Jet Pump 2	Wavemaster^® 8000 One-speed 2.0 HP, continuous duty 4.0 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care Options	ACE^® Salt Water Sanitizing System EverFresh^® system with CD ozone (optional)
Effective Filtration Area	65 sq. ft., top loading filters
Vinyl Cover	3.5" to 2.5" tapered 2 lb. density foam core
Vinyl Cover Colors	Ash Chestnut Caramel Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 6 adults each weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater

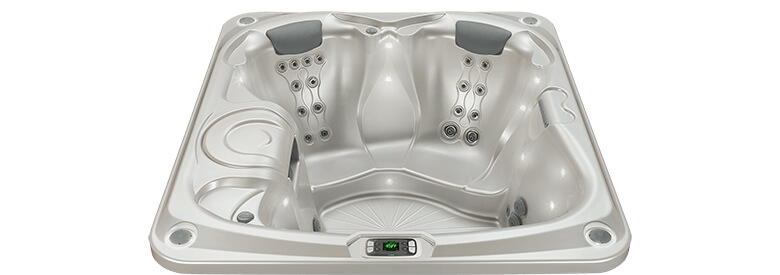

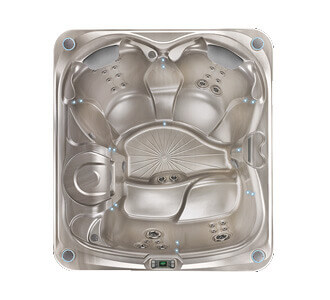

Glow

Illuminated by the Raio^® LED multi-color lighting system, the Glow model lets you choose the color to match your mood while enjoying 30 tension-relieving jets. This easy-to-use hot tub seats up to 4 people and is available with an optional EverFresh^® Ozone System or patented ACE^® Salt Water Sanitizing System.

Seating Capacity	4 Adults
Dimensions	6’4” x 7’ x 33” 1.93m x 2.13m x .84m
Water Capacity	270 gallons/1,025 liters
Weight	700 lbs./320 kg dry 3,650 lbs./1,665 kg filled*
Jet Count	30
Hot Tub Jets	2-Combination XL jets 6-Combination jets 22-Directional Precision^® jets
Lighting System	Raio^® multi-color points of light (16)
Water Features	Vidro^® backlit ribbon waterfall
Control System	IQ 2020^® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel
Heater	No-Fault^®, 4000w/230v
Jet Pump 1	Wavemaster^® 8200 Two-speed 2.0 HP, continuous duty 4.0 HP, breakdown torque
Jet Pump 2	Wavemaster^® 8000 One-speed 2.0 HP, continuous duty 4.0 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care Options	ACE^® Salt Water Sanitizing System EverFresh^® system with CD ozone (optional)
Effective Filtration Area	65 sq. ft., top loading filters
Vinyl Cover	3.5" to 2.5" tapered 2 lb. density foam core
Vinyl Cover Colors	Ash Chestnut Caramel Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 4 adults each weighing 175 lbs. each
Export models available in 230v, 50Hz, 1500w heater

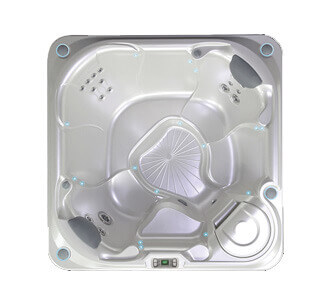

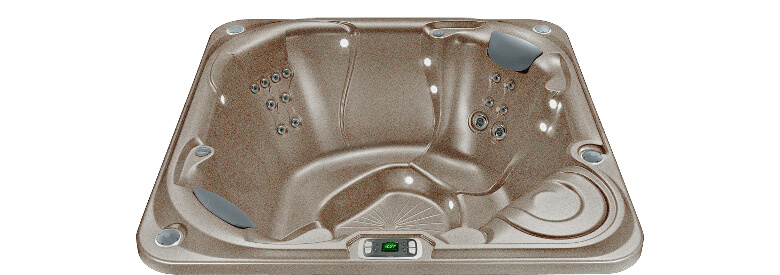

Bolt

Sleek style meets 17 tension-relieving jets in the simple and stylish Hot Spring Bolt. This easy-to-use hot tub seats up to 4 people and only requires 110V of power for more convenient installation.

Seating Capacity	4 Adults
Dimensions	6’8" x 6’8" x 33" 2.03m x 2.03m x .84m
Water Capacity	290 gallons/1,100 liters
Weight	700 lbs./320 kg dry 3,820 lbs./1,740 kg filled*
Jet Count	17
Hot Tub Jets	1-Combination XL jet 4-Combination jets 12-Directional Precision^® jets
Lighting System	Raio^® multi-color points of light (16)
Control System	IQ 2020^® with LCD control panel 115w/20 amp Includes G.F.C.I. protected power cord or 230v/50amp, 60Hz**
Heater	No-Fault^®, 1500w/115v or 6000w/230v
Jet Pump 1	Wavemaster^® 7000 One-speed 1.65 HP, continuous duty 3.5 HP, breakdown torque
Circulation Pump	SilentFlo 5000^® for quiet continuous filtration
Water Care Options	ACE^® Salt Water Sanitizing System EverFresh^® system with CD ozone (optional)
Effective Filtration Area	65 sq. ft., top loading filters
Vinyl Cover	3.5" to 2.5" tapered 2 lb. density foam core
Vinyl Cover Colors	Ash Chestnut Caramel Evergreen
Entertainment Systems (Optional)	Wireless Sound System
Cover Lifters (Optional)	CoverCradle II^®, CoverCradle^®, Lift ‘n Glide^®, UpRite^®
Steps (Optional)	Everwood^® Polymer

*Includes water and 4 adults each weighing 175 lbs. each
**G.F.C.I. protected sub-panel required in 230v mode
Export models available in 230v, 50Hz, 1500w heater
