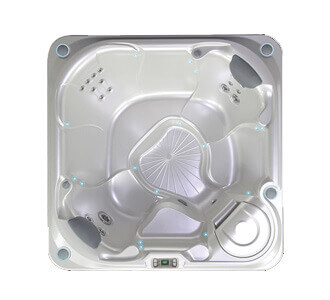

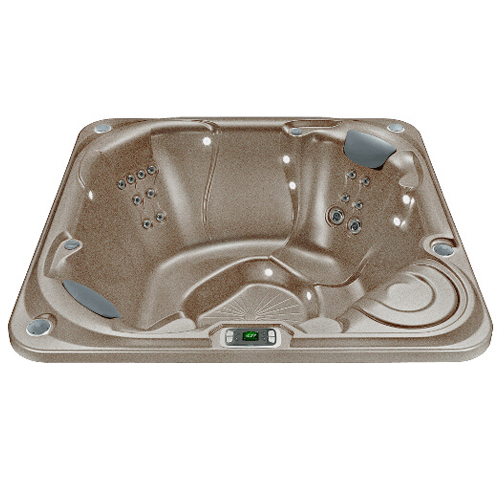

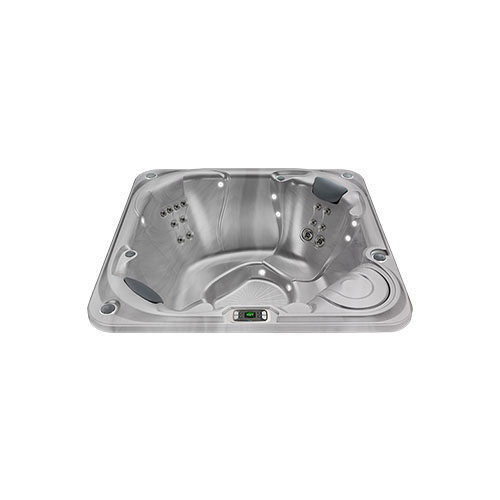

Bolt limelight model hot tub on white background


Sleek style meets 17 tension-relieving jets in the simple and stylish Hot Spring Bolt. This easy-to-use hot tub seats up to 4 people and only requires 110V of power for more convenient installation.

Seating Capacity4 Adults
Dimensions6’8″ x 6’8″ x 33″
2.03m x 2.03m x .84m
Water Capacity290 gallons/1,100 liters
Weight700 lbs./320 kg dry
3,820 lbs./1,740 kg filled*
Jet Count17
Hot Tub Jets1-Combination XL jet
4-Combination jets
12-Directional Precision® jets
Lighting SystemRaio® multi-color points of light (16)
Control SystemIQ 2020® with LCD control panel
115w/20 amp
Includes G.F.C.I. protected power cord
or 230v/50amp, 60Hz**
HeaterNo-Fault®, 1500w/115v or
Jet Pump 1Wavemaster® 7000
1.65 HP, continuous duty
3.5 HP, breakdown torque
Circulation PumpSilentFlo 5000® for quiet continuous filtration
Water Care OptionsACE® Salt Water Sanitizing System
EverFresh® system with CD ozone (optional)
Effective Filtration Area65 sq. ft., top loading filters
Vinyl Cover3.5″ to 2.5″ tapered
2 lb. density foam core
Vinyl Cover ColorsAsh
Entertainment Systems (Optional)Wireless Sound System
Cover Lifters (Optional)CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®
Steps (Optional)Everwood®

*Includes water and 4 adults each weighing 175 lbs. each
**G.F.C.I. protected sub-panel required in 230v mode
Export models available in 230v, 50Hz, 1500w heater
