Prism

7 Adults

Seating Capacity

9’2” x 7’7” x 38”
2.79m x 2.31m x 0.97m

Dimensions

No-Fault® , 4,000w/230v

Heater

FreshWater™ Salt System Ready

Water Care

Stunning lights meet powerful jets.

The largest spa in the Hot Spring®  Limelight®  Collection, Prism seats seven adults and features a relaxing lounge, plus an Adirondack-style seat with wrist, calf and foot therapy jets. The footwell includes a powerful, extra-large jet for enhanced foot and leg massage, along with several precision directional jets in corner and side seats.

Seating Capacity 7 Adults

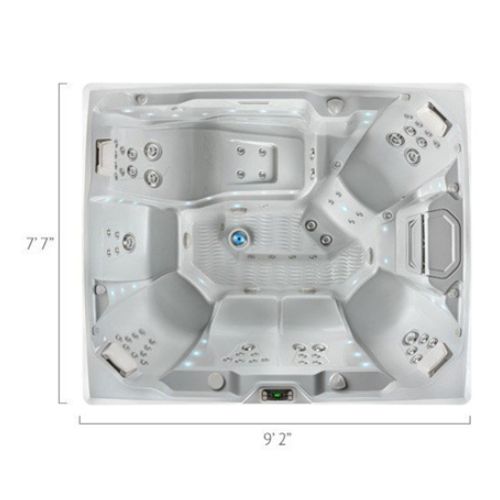

Dimensions 9’2” x 7’7” x 38”
2.79m x 2.31m x 0.97m
Water Capacity 525 gallons/1,990 liters
Weight 1,190 lbs./540 kg Dry;
6,795 lbs./3,085 kg Filled
Spa Shell Options Alpine White, Ice Gray, Platinum, Tuscan Sun or Desert
Cabinet Options Coastal Gray, Espresso or Sable
Jets – 73
(w/ Brushed Stainless
Steel Trim)
1 XXL Foot Well jet
1 XL Dual Rotary Jet
2 XL Single Rotary jets
3 XL Directional jets
7 Standard Dual Rotary jets
4 Standard Single Rotary jets
4 Standard Directional jets
10 Rotary Precision jets
41 Directional Precision jets
Water Care FreshWater™ Salt System Ready
Water Features Vidro® backlit ribbon waterfall
Jet Pump 1 Wavemaster® 9200
Two-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2 Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 3 Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Circulation Pump SilentFlo 5000® for quiet continuous filtration
Effective Filtration Area 150 sq. ft., top-loading filters
Control System IQ 2020® with LCD control panel 230v/50amp, 60Hz
230v/70amp, 60Hz (optional)
Includes G.F.C.I. protected sub-panel
Lighting System Raio® multi-color interior points of light (38) Exterior multi-color lighting with timer
Heater No-Fault® , 4,000w/230v
Energy Efficiency FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Vinyl Cover 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chestnut or Slate
Cover Lifters CoverCradle® included
Steps (Optional) Everwood®
or Polymer
Entertainment System (Optional) Wireless Entertainment

Additional information

Weight 67604803 lbs

Reviews

There are no reviews yet.

Be the first to review “Prism”

Your email address will not be published. Required fields are marked *

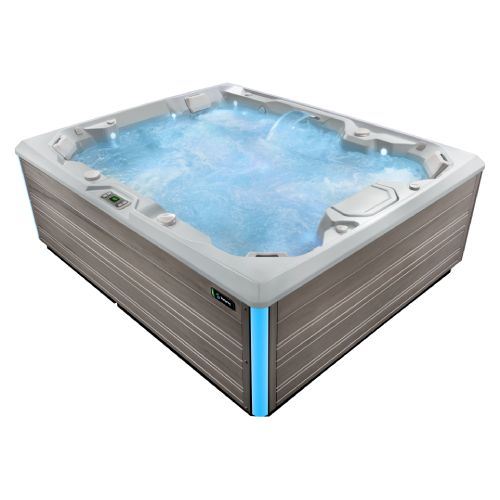

Prism model hot tub on white background

Prism SPECIFICATIONS

  • Seating Capacity

    7 Adults

  • Dimensions

    9’2” x 7’7” x 38”
    2.79m x 2.31m x 0.97m

  • Water Capacity

    525 gallons/1,990 liters

  • Weight

    1,190 lbs./540 kg Dry;
    6,795 lbs./3,085 kg Filled

  • Spa Shell Options

    Alpine White, Ice Gray, Platinum, Tuscan Sun or Desert

  • Cabinet Options

    Coastal Gray, Espresso or Sable

  • Jets – 73(w/ Brushed Stainless Steel Trim)

    1 XXL Foot Well jet
    1 XL Dual Rotary Jet
    2 XL Single Rotary jets
    3 XL Directional jets
    7 Standard Dual Rotary jets
    4 Standard Single Rotary jets
    4 Standard Directional jets
    10 Rotary Precision jets
    41 Directional Precision jets

  • Lighting System Interior

    Raio® multi-color interior points of light (38) Exterior multi-color lighting with timer

  • Water Care System

    FreshWater™ Salt System Ready

  • Water Feature

    Vidro® backlit ribbon waterfall

  • Jet Pump 1

    Wavemaster® 9200
    Two-speed
    2.5 HP Continuous Duty
    5.2 HP Breakdown Torque

  • Jet Pump 2

    Wavemaster® 9000
    One-speed
    2.5 HP Continuous Duty
    5.2 HP Breakdown Torque

  • Jet Pump 3

    Wavemaster® 9000
    One-speed
    2.5 HP Continuous Duty
    5.2 HP Breakdown Torque

  • Circulation Pump

    SilentFlo 5000® for quiet continuous filtration

  • Effective Filtration Area

    150 sq. ft., top-loading filters

  • Control System

    IQ 2020® with LCD control panel 230v/50amp, 60Hz
    230v/70amp, 60Hz (optional)
    Includes G.F.C.I. protected sub-panel

  • Heater

    No-Fault® , 4,000w/230v

  • Eenergy Efficiency

    FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law

  • Vinyl Cover

    3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chestnut or Slate

  • Cover Lifter(Optional)

    CoverCradle® included

  • Steps (Optional)

    Everwood®
    or Polymer

  • Entertainment System (Optional)

    Wireless Entertainment
