Relay
Seating Capacity
2.13m x 2.13m x .93m
Dimensions
Heater
Water Care
The Relay provides stylish comfort.
With seating for 6, cushioned headrests and 35 targeted jets, there’s plenty of room for you, friends and family to relax in the 360-gallon Relay. This value-packed spa is FiberCorTM insulated and comes with a NoFault® heater. It also comes with dimmable multi-color LED lights for added ambiance. This hot tub is part of the Hot Spot® Collection.
Choose from several water care system options, including the FROG® @ease® with SmartChlor® In-Line system, that make it easy for you to enjoy sparking clean water.
This spa is designed to become a part of your everyday life and offer jets that help you feel your best.
Relay Specifications
Seating Capacity | 6 adults |

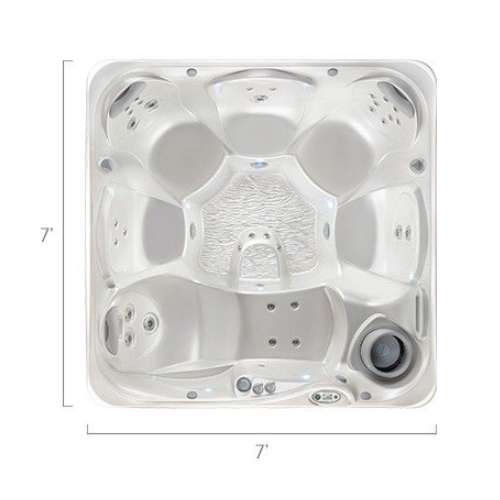

Dimensions |
7’ x 7’ x 36.75” 2.13m x 2.13m x .93m |
Water Capacity | 345 gallons/1,300 liters |
Weight |
835 lbs./380 kg dry; 4,765 lbs. 2,160 kg filled* |
Spa Shell Options | Pearl, Sterling Marble, Tuscan Sun or Desert |
Cabinet Options | Coastal Gray, Espresso or Teak |
Jets – 35 (all with stainless steel trim) |
5 Directional Hydromassage jets 3 Rotary Hydromassage jets 27 Directional Precision® jets |
Water Care System | FROG® In-Line Cartridge Ready |
Waterfall | Included |
Jet Pump 1 |
Wavemaster® 6200; Two-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
Jet Pump 2 |
Wavemaster® 6000; One-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
Ozone System (Optional) | FreshWater® III Corona Discharge |
Control System |
IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel |
Lighting | 10 multi-color LED points of light, dimmable |
Heater | No-Fault® 4000w/230v |
Energy Efficiency | FiberCor® Insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
Effective Filtration Area | 65 sq. ft., top loading |
Vinyl Cover |
3.5” to 2.5” tapered, 2 lb. density foam core Ash, Caramel or Chestnut |
Cover Lifter (Optional) | CoverCradle® , CoverCradle II, Lift ‘n Glide® or UpRite® |
Steps (Optional) |
Everwood® or Polymer Coastal Gray, Espresso or Teak |
Entertainment (Optional) | Wireless Sound System |
Additional information
Weight | 67604803 lbs |
---|

Relay SPECIFICATIONS
-
Seating Capacity
6 adults
-
Dimensions
7’ x 7’ x 36.75”
2.13m x 2.13m x .93m -
Water Capacity
345 gallons/1,300 liters
-
Weight
835 lbs./380 kg dry;
4,765 lbs. 2,160 kg filled* -
Spa Shell Options
Pearl, Sterling Marble, Tuscan Sun or Desert
-
Cabinet Options
Coastal Gray, Espresso or Teak
-
Jets (35)(w/ Stainless Steel Trim)
5 Directional Hydromassage jets
3 Rotary Hydromassage jets
27 Directional Precision® jets -
Water Care System
FROG® In-Line Cartridge Ready
-
Waterfall
Included
-
Jet Pump 1
Wavemaster® 6200;
Two-speed,
1.5 HP Continuous Duty,
3.2 HP Breakdown Torque -
Jet Pump 2
Wavemaster® 6000;
One-speed,
1.5 HP Continuous Duty,
3.2 HP Breakdown Torque -
Ozone System (Optional)
FreshWater® III Corona Discharge
-
Control System
IQ 2020®
230v/50 amp, 60 Hz
Includes G.F.C.I. protected sub-panel -
Lighting
10 multi-color LED points of light, dimmable
-
Heater
No-Fault® 4000w/230v
-
Eenergy Efficiency
FiberCor® Insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
-
Vinyl Cover
3.5” to 2.5” tapered, 2 lb. density foam core Ash, Caramel or Chestnut
-
Cover Lifter(Optional)
CoverCradle® , CoverCradle II, Lift ‘n Glide® or UpRite®
-
Steps (Optional)
Everwood® or Polymer Coastal Gray, Espresso or Teak
-
Entertainment System (Optional)
Wireless Sound System
