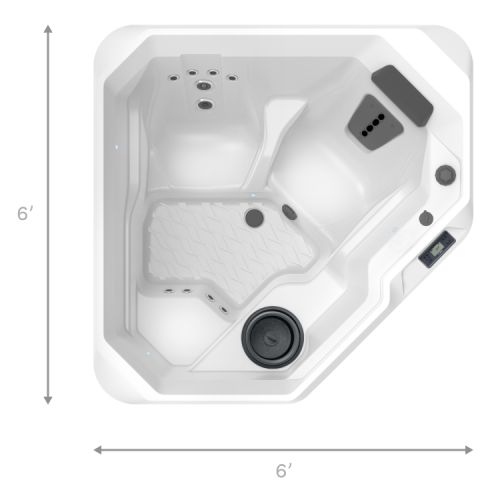

TX model hot tub with measurements


The TX is a good thing in a small package.

With seating for two, the TX packs power and comfort in a small package. Easy to fit in small spaces like a confined patio or porch, this easy-to-care-for hot tub offers 10 soothing jets — including a Moto-Massage®  jet, a No-Fault® heater and FiberCorTM insulation. The jet system offers an incredible 10 jets that relieve-tension in targeted areas including your back, neck, shoulders and calves. Designed to provide years of comfort, it is equally enjoyable, affordable and efficient. This hot tub is part of the Hot Spot® Collection.

Choose from several water care system options, including the FROG® @ease® with SmartChlor® In-Line system, that make it easy for you to enjoy sparking clean water.


TX Specifications

Seating Capacity 2 adults
Dimensions 5’8.5” x 5’8.5” x 29”
1.74m x 1.74m x .74m
Water Capacity 140 gallons/525 liters
Weight 525 lbs./240 kg dry;
2,045 lbs./925 kg filled*
Spa Shell Options Pearl or Desert
Cabinet Options Coastal Gray, Espresso or Teak
Jets – 10 1 Moto-Massage® jet
1 Rotary Hydromassage jet
8 Directional Precision® jets
Water Care System FROG® In-Line Cartridge Ready
Waterfall n/a
Jet Pump 1 Wavemaster® 4200;
1.0 HP Continuous Duty,
1.7 HP Breakdown Torque
Jet Pump 2 n/a
Circulation Pump (Optional) SilentFlo 5000®
Ozone System (Optional) FreshWater® III Corona Discharge
Control System IQ 2020® 115v/15 amp**
(Includes G.F.C.I. protected power cord) or 115v/30amp***
or 220v/50amp***, 60Hz
Lighting Blue LED light, dimmable; Splendors® multi-colored LED light, dimmable (optional)
Heater No-Fault® 1000w/115v
Energy Efficiency FiberCor® Insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
Effective Filtration Area 30 sq. ft., top loading
Vinyl Cover 3” to 2” tapered, 1 lb. density foam core
Ash, Caramel or Chestnut
Cover Lifter (Optional) n/a
Steps (Optional) Everwood® or Polymer
Coastal Gray, Espresso or Teak
