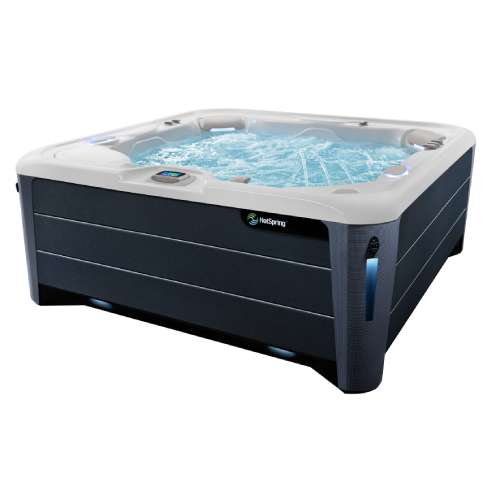

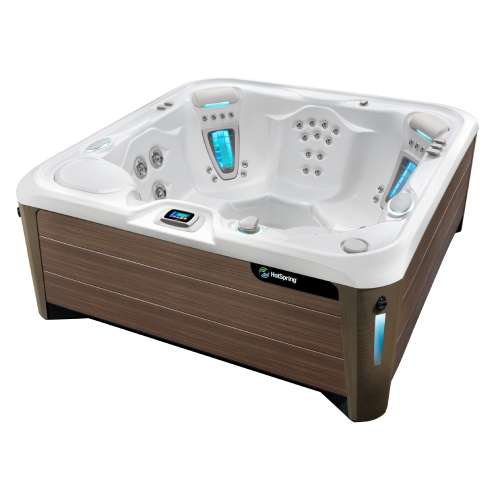

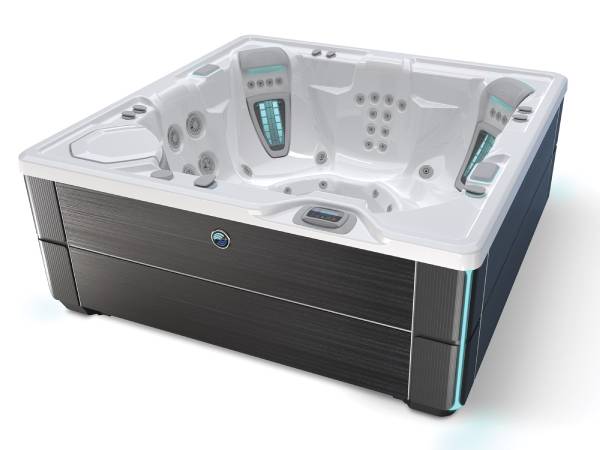

DRAWS A CROWD. WORKS THE ROOM.
The family-friendly Vanguard offers six seats in a mid-sized space. It includes two Moto-Massage® DX bucket seats to soothe your neck, shoulders, back, hips, calves and feet.
Vanguard Specifications
Seating Capacity | 6 Adults |

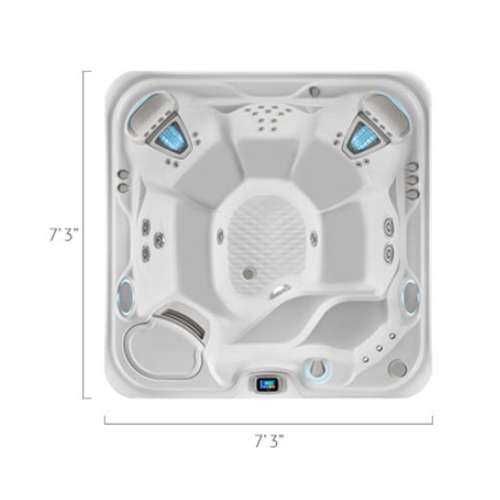

Dimensions | 7’3″ x 7’3″ x 36″ |
Water Capacity | 375 gallons |
Weight | 710 lbs. 4,890 lbs. filled* |

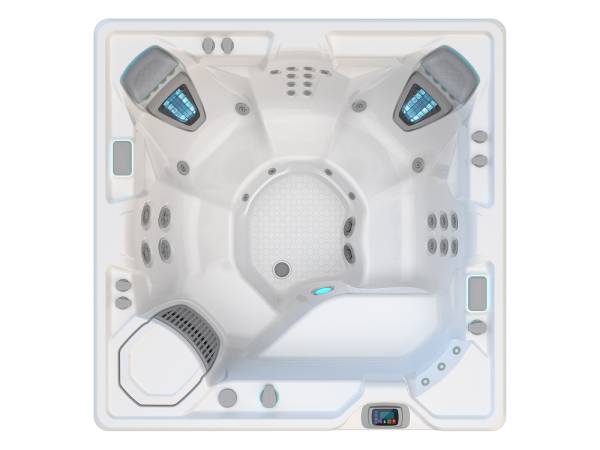

Jets (42) (w/ Stainless Steel Trim) |
2 Moto-Massage® DX jet (2) 2 SoothingStream® jets 2 JetStream® jets 2 Rotary Hydromassage jets 10 Hydrostream jets 22 Directional Precision® jets |
Water Care System (Optional) | FreshWater™ Salt System Ready |

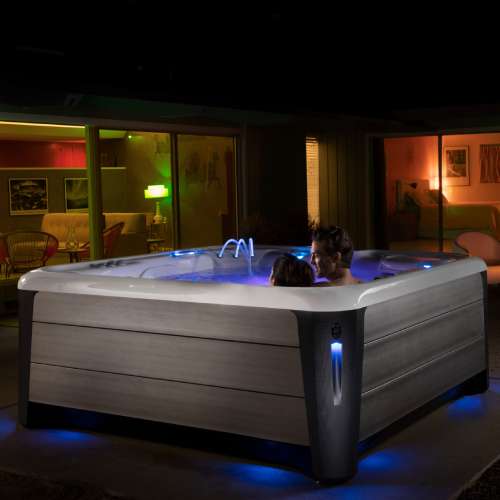

Water Feature | BellaFontana® with 3 illuminated arcs of water |
Jet Pump 1 | Wavemaster® 9000 One-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque |
Jet Pump 2 | Wavemaster® 9200 Two-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque |
Circulation Pump | SilentFlo 5000® for quiet continuous filtration |
Effective Filtration Area | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
Control System | IQ 2020® with wireless remote touchscreen 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel |
Lighting System | Interior
Exterior Customizable LED Zone Lighting Multi-Color LED Lighting with Timer |
Heater | Titanium No-Fault® , 4000w/230v |
Energy Efficiency | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |

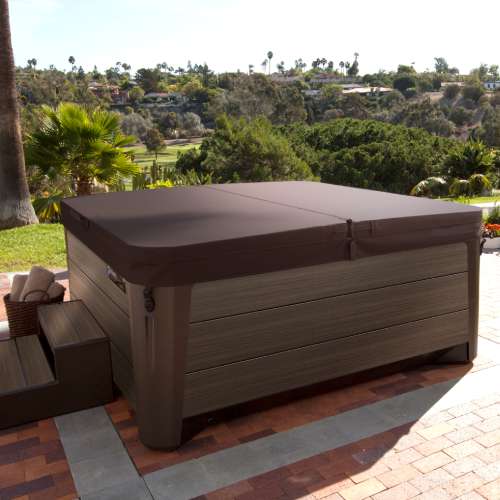

Vinyl Cover | 3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal |
Cover Lifter (Optional) | CoverCradle® , CoverCradle II® , Lift ‘n Glide® , UpRite® |

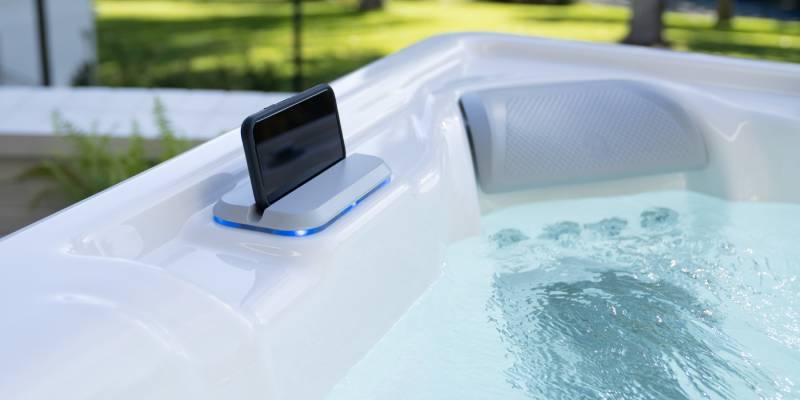

Entertainment System (Optional) | Bluetooth Music System, Subwoofer |
Additional information
Weight | 67604803 lbs |
---|

Vanguard SPECIFICATIONS
-
Seating Capacity
6 Adults
-
Dimensions
7’3″ x 7’3″ x 36″
-
Water Capacity
375 gallons
-
Weight
710 lbs.
4,890 lbs. filled* -
Jets
42
-
Jets (42)(w/ Stainless Steel Trim)
2 Moto-Massage® DX jet (2)
2 SoothingStream® jets
2 JetStream® jets
2 Rotary Hydromassage jets
10 Hydrostream jets
22 Directional Precision® jets -
Lighting System Interior
Interior
Exterior
Customizable LED Zone Lighting
Multi-Color LED Lighting with Timer -
Water Care System
FreshWater™ Salt System Ready
-
Water Feature
BellaFontana® with 3 illuminated arcs of water
-
Jet Pump 1
Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque -
Jet Pump 2
Wavemaster® 9200
Two-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque -
Circulation Pump
SilentFlo 5000® for quiet continuous filtration
-
Effective Filtration Area
325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration
-
Control System
IQ 2020® with wireless remote touchscreen
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel -
Heater
Titanium No-Fault® , 4000w/230v
-
Eenergy Efficiency
Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
-
Vinyl Cover
3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal
-
Cover Lifter(Optional)
CoverCradle® , CoverCradle II® , Lift ‘n Glide® , UpRite®
-
Entertainment System (Optional)
Bluetooth Music System, Subwoofer
