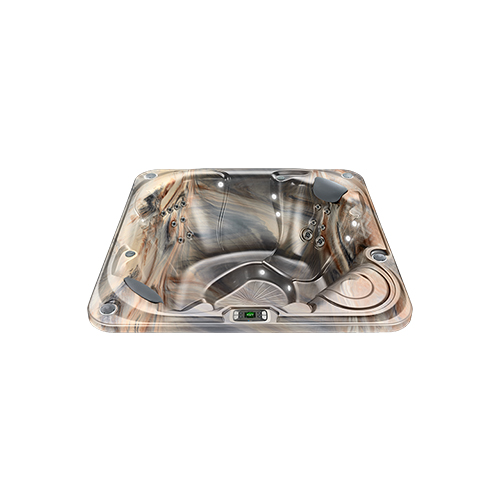

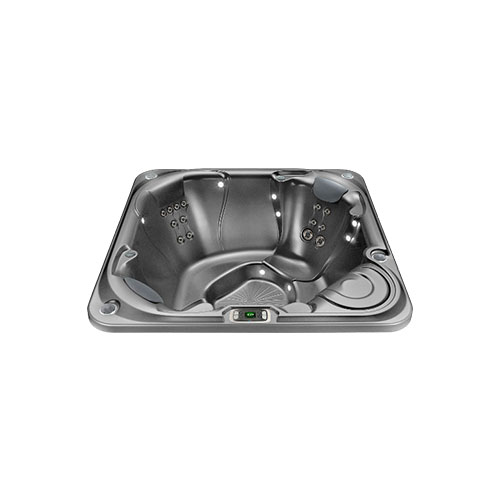

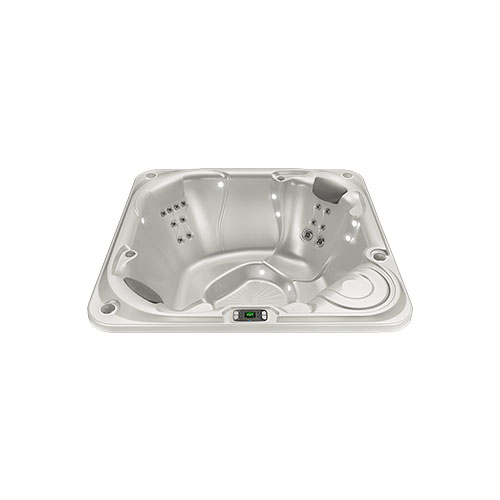

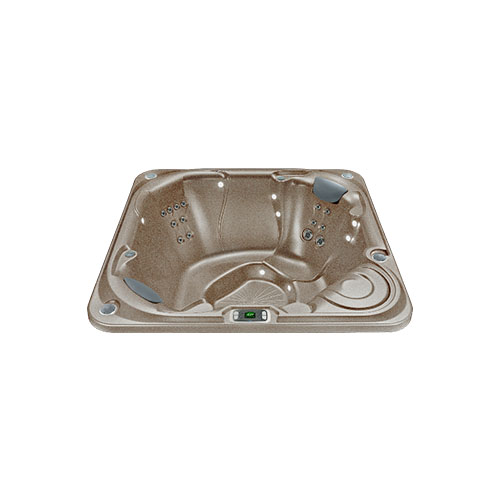

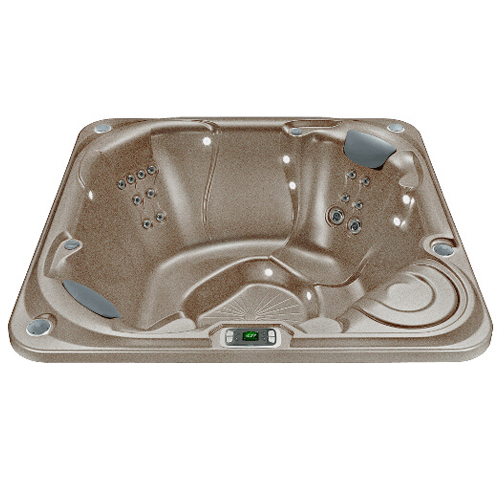

Bolt limelight model hot tub on white background
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt

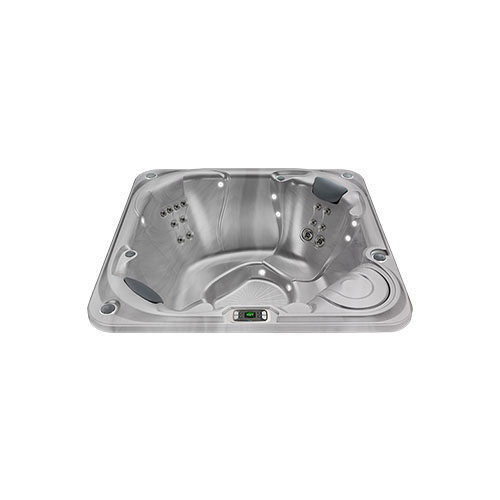

Bolt limelight model hot tub on white background
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt
Bolt

Bolt

17

Jets

4 Adults

Seating Capacity

6’8″ x 6’8″ x 33″
2.03m x 2.03m x .84m

Dimensions

No-Fault®, 1500w/115v or
6000w/230v

Heater

ACE® Salt Water Sanitizing System || EverFresh® system with CD ozone (optional)

Water Care

Get BrochurePricing & Options

Sleek style meets 17 tension-relieving jets in the simple and stylish Hot Spring Bolt. This easy-to-use hot tub seats up to 4 people and only requires 110V of power for more convenient installation.

Category:
Seating Capacity 4 Adults
Dimensions 6’8″ x 6’8″ x 33″
2.03m x 2.03m x .84m
Water Capacity 290 gallons/1,100 liters
Weight 700 lbs./320 kg dry
3,820 lbs./1,740 kg filled*
Jet Count 17
Hot Tub Jets 1-Combination XL jet
4-Combination jets
12-Directional Precision® jets
Lighting System Raio® multi-color points of light (16)
Control System IQ 2020® with LCD control panel
115w/20 amp
Includes G.F.C.I. protected power cord
or 230v/50amp, 60Hz**
Heater No-Fault®, 1500w/115v or
6000w/230v
Jet Pump 1 Wavemaster® 7000
One-speed
1.65 HP, continuous duty
3.5 HP, breakdown torque
Circulation Pump SilentFlo 5000® for quiet continuous filtration
Water Care Options ACE® Salt Water Sanitizing System
EverFresh® system with CD ozone (optional)
Effective Filtration Area 65 sq. ft., top loading filters
Vinyl Cover 3.5″ to 2.5″ tapered
2 lb. density foam core
Vinyl Cover Colors Ash
Chestnut
Caramel
Evergreen
Entertainment Systems (Optional) Wireless Sound System
Cover Lifters (Optional) CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®
Steps (Optional) Everwood®
Polymer

*Includes water and 4 adults each weighing 175 lbs. each
**G.F.C.I. protected sub-panel required in 230v mode
Export models available in 230v, 50Hz, 1500w heater

Additional information

Weight 67604803 lbs

Reviews

There are no reviews yet.

Be the first to review “Bolt”

Your email address will not be published. Required fields are marked *

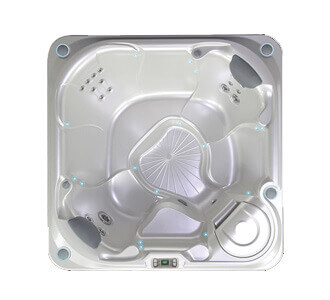

Bolt limelight model hot tub on white background

Bolt SPECIFICATIONS

  • Seating Capacity

    4 Adults

  • Dimensions

    6’8″ x 6’8″ x 33″
    2.03m x 2.03m x .84m

  • Water Capacity

    290 gallons/1,100 liters

  • Weight

    700 lbs./320 kg dry
    3,820 lbs./1,740 kg filled*

  • Jets

    1-Combination XL jet 4-Combination jets 12-Directional Precision® jets

  • Jet Count

    17

  • Hot Tub Jets

    1-Combination XL jet
    4-Combination jets
    12-Directional Precision® jets

  • Lighting System Interior

    Raio® multi-color points of light (16)

  • Water Care System

    ACE® Salt Water Sanitizing System || EverFresh® system with CD ozone (optional)

  • Jet Pump 1

    Wavemaster® 7000
    One-speed
    1.65 HP, continuous duty
    3.5 HP, breakdown torque

  • Circulation Pump

    SilentFlo 5000® for quiet continuous filtration

  • Control System

    IQ 2020® with LCD control panel
    115w/20 amp
    Includes G.F.C.I. protected power cord
    or 230v/50amp, 60Hz**

  • Heater

    No-Fault®, 1500w/115v or
    6000w/230v

  • Vinyl Cover

    3.5″ to 2.5″ tapered
    2 lb. density foam core

  • Vinyl Cover Colors

    Ash
    Chestnut
    Caramel
    Evergreen

  • Cover Lifter(Optional)

    CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®

  • Steps (Optional)

    Everwood®
    Polymer

  • Entertainment System (Optional)

    Wireless Sound System
