Envoy
Seating Capacity
Dimensions
Heater
Water Care
ROOMY LOUNGER

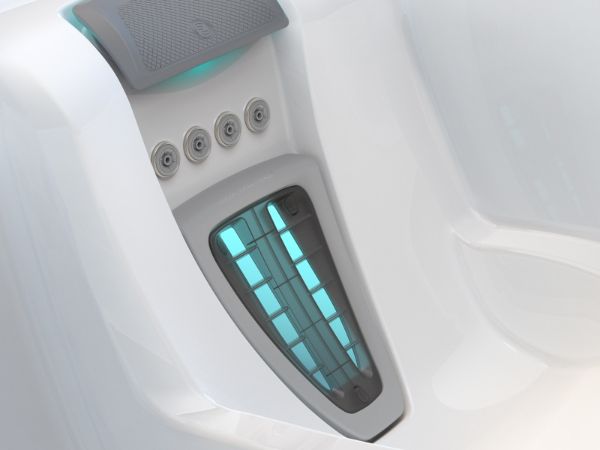

The roomy Envoy offers five full-body massage options with two Moto-Massage® DX jets, a lounge and captain’s chair with wrist jets, and foot or ankle massage in every seat.
Envoy Specifications
Seating Capacity | 5 Adults |

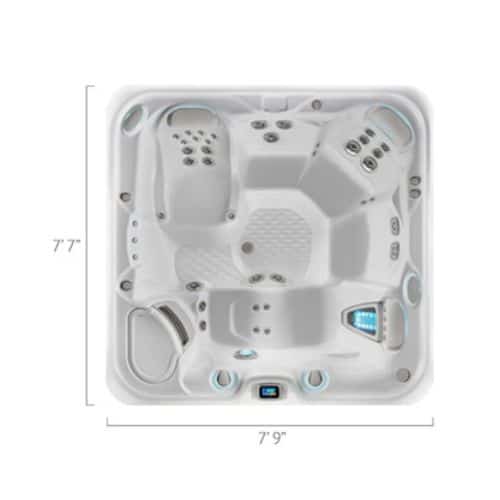

Dimensions | 8’4″ x 7’7″ x 38″ |
Water Capacity | 455 gallons |
Weight | 785 lbs 5,455 lbs. filled* |
Jets (55) (w/ Stainless Steel Trim) |
2 Moto-Massage® DX jets (2) 2 SoothingStream® jets 5 JetStream® jets 2 Rotary Hydromassage jets 2 Directional Hydromassage jets 6 HydroStream® jets 4 Rotary Precision® jets 30 Directional Precision® jets |
Water Care System (Optional) | FreshWater™ Salt System Ready |
Water Feature | BellaFontana® with 3 illuminated arcs of water |
Jet Pump 1 | Wavemaster® 9000 One-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque |
Jet Pump 2 | Wavemaster® 8200 Two-speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque |
Circulation Pump | SilentFlo 5000® for quiet, continuous filtration |
Effective Filtration Area | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
Control System | IQ 2020® with wireless remote touchscreen 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel |
Lighting System | Interior Exterior Customizable LED Zone Lighting Multi-Color LED Lighting with Timer |
Heater | Titanium No-Fault® , 4000w/230v |
Energy Efficiency | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
Vinyl Cover | 3.5″ to 2.5″ tapered 2 lb. density foam core with hinge seal |

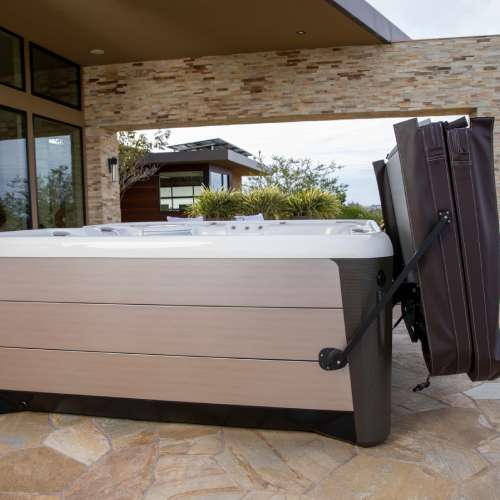

Cover Lifter (Optional) | CoverCradle® , CoverCradle II® , Lift ‘n Glide® , UpRite® |
Entertainment System (optional) | Bluetooth Music System, Subwoofer |
Additional information
Weight | 67604803 lbs |
---|

Envoy SPECIFICATIONS
-
Seating Capacity
5 Adults
-
Dimensions
8’4″ x 7’7″ x 38″
-
Water Capacity
455 gallons
-
Weight
785 lbs
5,455 lbs. filled* -
Jets
55
-
Jets (55)(w/ Stainless Steel Trim)
2 Moto-Massage® DX jets (2)
2 SoothingStream® jets
5 JetStream® jets
2 Rotary Hydromassage jets
2 Directional Hydromassage jets
6 HydroStream® jets
4 Rotary Precision® jets
30 Directional Precision® jets -
Water Care System
FreshWater™ Salt System Ready
-
Water Feature
BellaFontana® with 3 illuminated arcs of water
-
Jet Pump 1
Wavemaster® 9000
One-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque -
Jet Pump 2
Wavemaster® 8200
Two-speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque -
Circulation Pump
SilentFlo 5000® for quiet, continuous filtration
-
Effective Filtration Area
325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration
-
Control System
IQ 2020® with wireless remote touchscreen
230v/50amp, 60Hz
Includes G.F.C.I. protected sub-panel -
Heater
Titanium No-Fault® , 4000w/230v
-
Eenergy Efficiency
Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
-
Vinyl Cover
3.5″ to 2.5″ tapered
2 lb. density foam core with hinge seal -
Cover Lifter(Optional)
CoverCradle® , CoverCradle II® , Lift ‘n Glide® , UpRite®
-
Entertainment System (Optional)
Bluetooth Music System, Subwoofer
